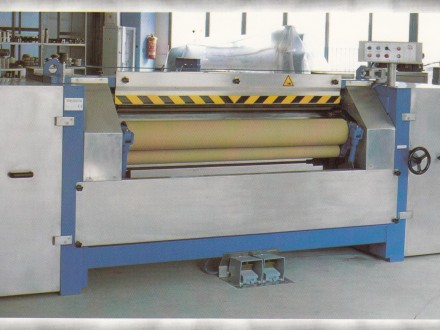

Sol Meccanica experience in maintenance and recondictioning activies are the input for designing and costruction of the new SETTING/OUT MACHINE SM 1600.
This new industrial product, finalized to the goat-sheep, pig skin, is an hydraulic equipment whit felt interchangeable cylinder for specific final leather product.
Main data :
17 plus 17 inox blade cylinder with standard pitch in order to optimize the leather footage, to minimize the workmanship refuse, to low down noisiness.
Support group (upper rubber cylinder plus rubber stretching cylider)
Hydraulic station serving: Equipment opening and closing; out of speed adjustment; felt cylinder pressure adjustment.
The machine has been equipped whit three safety system pneumatic barrel, electric switch wire, safety steel carter.
The carters and the boards made in inox steel, engines and control elements "tropical protection type"
NORM CE
Technical Features :
Working width : 1600-1800-2200 mm.
Installed power : 13,5 Kw
Net weight :3200 kg
Overrall Dimension : 3500x 1210x 1560 mm. (1600mm)
