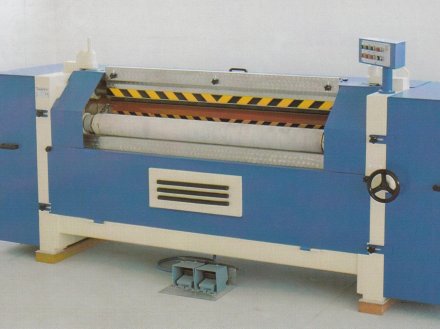

To satisfy technical requirement of our customers, Sol Meccanica has made the new Staking machine PL2 finalized to the production of goat, sheep, pig skin.
Cast steel supports, simple adjusments, high hourly production are the main qualities of this up to dated rotating staking machine. The new PL2 warrants an effective peripherical edges, a perfect stretching out of the skin with footage increasing.
Main Data :
Two rubber cylinder coupled with leather directely on the cylinder
Upper and lower reversibile cylinders controlled by hydraulic operation system.
Upper 7+7 and low 8+8 blade cylinders with hardened double face blades
Upper and lower cylinders moved by two electrical engins tri-phase.
Hydraulic station serving :
Equipment opening out and closing
Out speed adjustment
The machine has been equipped whit three safety system pneumatic barrel, electric switch wire, safety steel carter.
The carters and the boards made in inox steel, engines and control elements "tropical protection type"
NORM CE
The machine is show in the video here down at minute 1.18
Technical features :
Working width : 1600-1800-2200 mm.
Installed Power : 15 Kw
Net Weight : 3200 Kg
Overall dimension : 3500x 1210x 1560 mm (1600mm)
