For many years the company Sol Meccanica aims to deliver more effective, fast and avantgarde product.

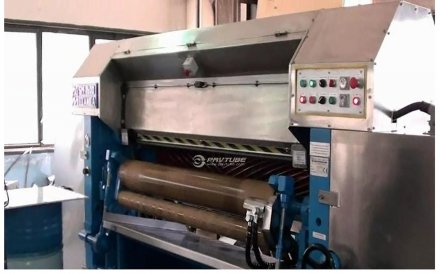

It 's the case of the new setting out machine with double cylinder felt that revolutionized the world of work in this field.
This machine is equipped with a double system of cylinder made of felt which allows to change work colour (skins from clear to dark or vice versa) only by pressing a button.
The system that allows the change of working consists in a process that occurs in about 40 seconds where the felt cylinder is washed, wrung out and replaced, everything automatically.
It is equipped with a hydraulic power unit from 20 Kw.

Advantages when machine works:

- Low noises
- Facilitated opening of the skin
- Good wringing due to the diameter and pitch of the blades

The machine is customizable in 2 measures (1600-1800 mm.) of work light depending on the needs of the customer.

NORM   CE

The machine is show in the video here down at minute 3.48

Techinical Specifications:

Working widths 1600 - 1800 mm
Installed power 20 Kw
Net Weight 3500 Kg
Dimensions 3500x 1210x 1860 mm
